Canadian Mercury Pickups 1946-1968
This site is about the Mercury trucks that were built in Canada between 1946 & 1968 by the Ford Motor Company of Canada, Limited.

1949 - 1951 Ford Truck US
Serial and Engine Number				1949 Rating Plate
The serial and the engine number are the same on a 1949 Ford truck and are located on the glove box door and also on the top left side of the frame near the steering gear. The first digit in the Serial Number indicate the year, 9 = 1949 The second and third digits are either 7H, which denotes a 6-cylinder engine or 8R which denotes a 8-cylinder engine. The forth digit is a letter which identifies the model line: A=Passenger, C=1/2 Ton pickup, Y=3/4 Ton and T= 1 Ton. The last 6 digits indicate the production sequence.
Body Style	Engine		Prefix	The Maximum Gross Vehicle Weight is in pounds.
F-1,1/2 Ton	6		97HC
F-2,3/4 Ton	6		97HY	Series	Type		G.V.W. (LBS)
F-3, 3/4 Ton HD	6		97HY	F-1	Conventional		4,700
F-4, 1 Ton	6		97HT	F-2	Conventional		5,700
F-1, 1/2 Ton	8		98RC	F-3	Conventional		6,800
F-2, 3/4 Ton	8		98RY	F-4	Conventional (Single Rear wheel)		7,500
F-3, 3/4Ton HD	8		98RY
F-4, 1 Ton	8		98RT	F-4	Conventional (Dual rear wheels)		10,000
F-1 Series
Type	Model No.		NO. Cyl.	The Body Code
Pickup	9HC-83		6	Body Style		Code
Pickup	9RC-83		8
Panel	9HC-82		6	Platform		80
Panel	9RC-82		8	Closed cab		81
Stake	9HC-86		6	Panel Delivery		82
Stake	9RC-86		8	Pickup		83
Platform	9HC-80		6	Chassis-cowl		84
Platform	9RC-80		8	Chassis-windshield		85
Chassis-cab	9HC-81		6	Stake		86
Chassis-cab	9RC-81		8	Rear Axle
Chassis-cowl	9HC-84		6	Series	Standard		Optional
Chassis-cowl	9RC-84		8	F-1	3.73:1		4.27:1
Chassis-Windshield	8HC-85		6	F-2, F-3	4.86:1		4.11:1
Chassis-Windshield	9RC-85		8	F-4	5.14:1		5.83:1
F-2 Series				F-4	---		6.67:1
Express Pickup	9HD-83		6
Express Pickup	9RD-83		8
Stake	9HD-86		6	The Paint Color Code did not appear on the truck until later years.
Stake	9RD-86		8
Platform	9HD-80		6	Color		Code
Platform	9RD-80		8	Vermillion		M-1722
Chassis-cab	9HD-81		6	Meadow Green		M-14283
Chassis-cab	9RD-81		8	Chrome Yellow		M-14301
Chassis-cowl	9HD-84		6	Birch Gray		M-14286
Chassis-cowl	9RD-84		8	Med. Luster Black		M-1724
Chassis-Windshield	9HD-85		6
Chassis-Windshield	9RD-85		8
F-3 Series
Express Pickup	9HY-83		6
Express Pickup	9RY-83		8
Stake	9HY-86		6
Stake	9RY-86		8

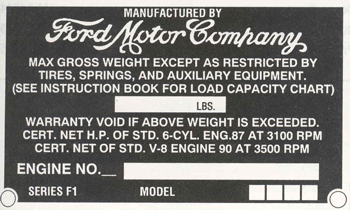

Platform	9HY-80		6	1950 Rating Plate
Platform	9RY-80		8	The Serial number and engine number found on the 1950 Ford truck are a continuation of the 1949 numbers.
Chassis-cab	9HY-81		6
Chassis-cab	9RY-81		8	Paint Color Code for 1950
Chassis-cowl	9HY-84		6	Color		Code
Chassis-cowl	9RY-84		8	Vermillion		M-1722
Chassis-Windshield	9HY-85		6	Raven Black		M-1724
Chassis-Windshield	9RY-85		8	Palisade Green		M-14341
F-4 Series				Meadow Green		M-14283
Stake	9HTL-86		6	Sheridan Blue		M-14285
Stake	9RTL-86		8	Silvertone Gray		M-14197
Platform	9HTL-80		6	Birch Gray		M-14286
Platform	9RTL-80		8	Dover Gray		M-14344
Chassis-cab	9HTL-81		6	Sunland Beige		M-14343
Chassis-cab	9RTL-81		8	Prime		M-4415
Chassis-cowl	9HTL-84		6
Chassis-cowl	9RTL-84		8
Chassis-Windshield	9HTL-85		6
Chassis-Windshield	9RTL-85		8

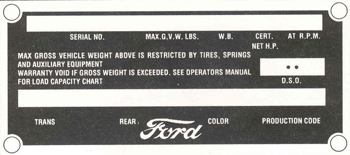

New for 1951				1951 Rating Plate
Body Style		Code		Until September 15, 1951, the Serial number and engine number found on the 1951 Ford truck are a continuation of the 1949 and 1950 numbers.
Panel Delivery Deluxe		82A or 82B
